Widgets gallery¶

`silx.gui.console` Widgets¶

Widget	Description
	`IPythonWidget` is an interactive console widget running a :class`QtInProcessKernelManager`. This allows to push variables to the interactive console, and interact with your application (e.g. adding curves to a plot)
	`IPythonDockWidget` is an `IPythonWidget` embedded in a `QDockWidget`.

Widget	Description
	`ArrayTableWidget` is a table widget with browsers designed to display the content of multi-dimensional data arrays.
	`DataViewer` is a widget designed to display data using the most adapted view.
	`DataViewerFrame` is a `DataViewer` with a view selector that lets you view the data using any compatible view.
	`NumpyAxesSelector` is a widget designed to select a subarray in a n-dimensional array, by fixing the index on some of the dimensions.

Widget	Description
	`FitWidget` is a widget designed to configure and run a fitting process, with constraints on parameters.
	`BackgroundWidget.BackgroundDialog` is a widget designed to adjust the parameters and preview the results of a snip or strip background filter.

Widget	Description
	`Hdf5TreeView` is a tree view desiged to browse an HDF5 file structure.

Plotting widgets:

Widget	Description
	`PlotWidget` is the base Qt widget providing a plot area. Other plot widgets are based on this one and provides the same API.
	`PlotWindow` adds a toolbar to `PlotWidget`. The content of this toolbar can be configured from the `PlotWindow` constructor or by hiding its content afterward.
	`Plot1D` is a `PlotWindow` configured with tools useful for curves.
	`Plot2D` is a `PlotWindow` configured with tools useful for images.
	`ImageView` adds side histograms to a `Plot2D` widget.
	`StackView` is a widget designed to display an image from a stack of images in a `PlotWindow` widget, with a frame browser to navigate in the stack. The profile tool can do a 2D profile on the stack of images.

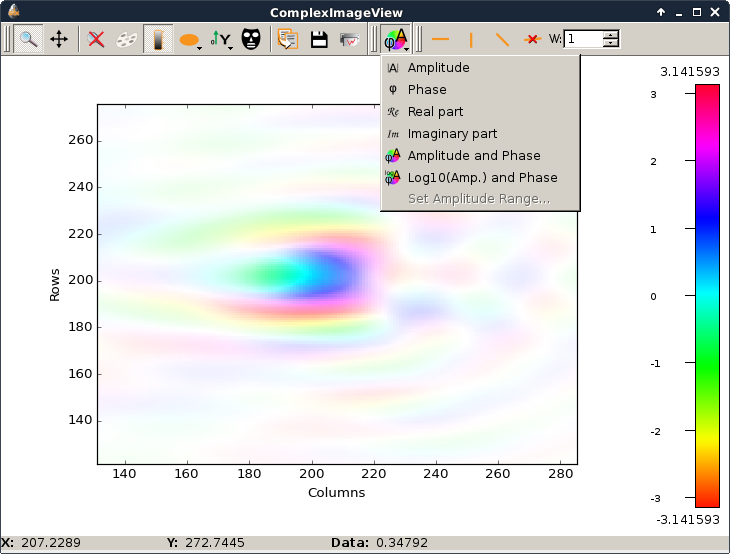

	`ComplexImageView` is a widget dedicated to visualize a single 2D dataset of complex data. It allows to switch between viewing amplitude, phase, real, imaginary, colored phase with amplitude or log10(amplitude) as brightness.

Additional widgets:

Widget	Description
	`PlotTools.PositionInfo` is a widget displaying mouse position and information of a `PlotWidget` associated to the mouse position.
	`PlotTools.LimitsToolBar` is a QToolBar displaying and controlling the limits of a `PlotWidget`.
	`ColorBar.ColorBarWidget` display colormap gradient and can be linked with a plot to display the colormap

Widget	Description

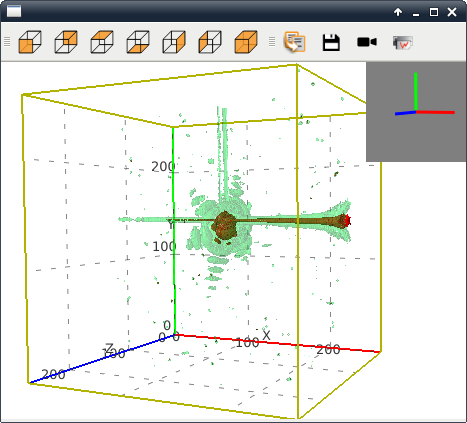

	`ScalarFieldView` is a `Plot3DWindow` dedicated to display 3D scalar field. It can display iso-surfaces and an interactive cutting plane. Sample code: viewer3DVolume.py.
	`Plot3DWindow` is a `QMainWindow` with a `Plot3DWidget` as central widget and toolbars.
	`Plot3DWidget` is the base Qt widget providing an OpenGL 3D scene. Other widgets are using this widget as the OpenGL scene canvas.
	`SFViewParamTree` is a `QTreeView` widget that can be attached to a `ScalarFieldView`. It displays current parameters of the `ScalarFieldView` and allows to modify it. Sample code: viewer3DVolume.py.

Widget	Description
	`FrameBrowser.FrameBrowser` is a browser widget designed to browse through a sequence of integers (e.g. the indices of an array)
	`FrameBrowser.HorizontalSliderWithBrowser` is a `FrameBrowser` with an additional slider.
	`PeriodicTable.PeriodicCombo` is a `QComboBox` widget designed to select a single atomic element.
	`PeriodicTable.PeriodicList` is a `QTreeWidget` designed to select one or more atomic elements.
	`PeriodicTable.PeriodicTable` is a periodic table widget designed to select one or more atomic elements.
	`TableWidget.TableWidget` and `TableWidget.TableView` inherit respectively `QTableWidget` and `QTableView`, and add a context menu with cut/copy/paste actions.
	`WaitingPushButton` is a `QPushButton` that can be graphically disabled, for example to wait for a callback function to finish computing.
	`ThreadPoolPushButton` is a `WaitingPushButton` that executes a callback in a thread.
