PlotTools: Tool widgets for PlotWidget

Set of widgets to associate with a :class:’PlotWidget’.

PositionInfo class

class silx.gui.plot.PlotTools.PositionInfo(parent=None, plot=None, converters=None)

Bases: PyQt4.QtGui.QWidget

QWidget displaying coords converted from data coords of the mouse.

Provide this widget with a list of couple:

• A name to display before the data
• A function that takes (x, y) as arguments and returns something that gets converted to a string. If the result is a float it is converted with ‘%.7g’ format.

To run the following sample code, a QApplication must be initialized. First, create a PlotWindow and add a QToolBar where to place the PositionInfo widget.

>>> from silx.gui.plot import PlotWindow
>>> from silx.gui import qt

>>> plot = PlotWindow()  # Create a PlotWindow to add the widget to
>>> toolBar = qt.QToolBar()  # Create a toolbar to place the widget in
>>> plot.addToolBar(qt.Qt.BottomToolBarArea, toolBar)  # Add it to plot

Then, create the PositionInfo widget and add it to the toolbar. The PositionInfo widget is created with a list of converters, here to display polar coordinates of the mouse position.

>>> import numpy
>>> from silx.gui.plot.PlotTools import PositionInfo

>>> position = PositionInfo(plot=plot, converters=[
...     ('Radius', lambda x, y: numpy.sqrt(x*x + y*y)),
...     ('Angle', lambda x, y: numpy.degrees(numpy.arctan2(y, x)))])
>>> toolBar.addWidget(position)  # Add the widget to the toolbar
<...>
>>> plot.show()  # To display the PlotWindow with the position widget

Parameters:

• plot – The PlotWidget this widget is displaying data coords from.
• converters – List of 2-tuple: name to display and conversion function from (x, y) in data coords to displayed value. If None, the default, it displays X and Y.
• parent – Parent widget

autoSnapToActiveCurve = None

Toggle snapping use position to active curve.

• True to snap used coordinates to the active curve if the active curve is displayed with symbols and mouse is close enough. If the mouse is not close to a point of the curve, values are displayed in red.
• False (the default) to always use mouse coordinates.

plot

The PlotWindow this widget is attached to.

getConverters()

Return the list of converters as 2-tuple (name, function).

LimitsToolBar class

class silx.gui.plot.PlotTools.LimitsToolBar(parent=None, plot=None, title='Limits')

Bases: PyQt4.QtGui.QToolBar

QToolBar displaying and controlling the limits of a PlotWidget.

To run the following sample code, a QApplication must be initialized. First, create a PlotWindow:

>>> from silx.gui.plot import PlotWindow
>>> plot = PlotWindow()  # Create a PlotWindow to add the toolbar to

Then, create the LimitsToolBar and add it to the PlotWindow.

>>> from silx.gui import qt
>>> from silx.gui.plot.PlotTools import LimitsToolBar

>>> toolbar = LimitsToolBar(plot=plot)  # Create the toolbar
>>> plot.addToolBar(qt.Qt.BottomToolBarArea, toolbar)  # Add it to the plot
>>> plot.show()  # To display the PlotWindow with the limits toolbar

Parameters:

• parent – See QToolBar.
• plot – PlotWidget instance on which to operate.
• title (str) – See QToolBar.

plot

The PlotWidget the toolbar is attached to.

ColorBar: ColorBar Widget

Module containing several widgets associated to a colormap.

ColorBarWidget class

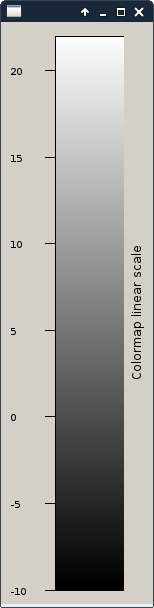

class silx.gui.plot.ColorBar.ColorBarWidget(parent=None, plot=None, legend=None)

Colorbar widget displaying a colormap

It uses a description of colormap as dict compatible with Plot.

To run the following sample code, a QApplication must be initialized.

>>> from silx.gui.plot import Plot2D
>>> from silx.gui.plot.ColorBar import ColorBarWidget

>>> plot = Plot2D()  # Create a plot widget
>>> plot.show()

>>> colorbar = ColorBarWidget(plot=plot, legend='Colormap')  # Associate the colorbar with it
>>> colorbar.show()

Initializer parameters:

Parameters:

• parent – See QWidget
• plot – PlotWidget the colorbar is attached to (optional)
• legend (str) – the label to set to the colorbar

sigVisibleChanged

Emitted when the property visible have changed.

getPlot()

Returns the Plot associated to this widget or None

setPlot(plot)

Associate a plot to the ColorBar

Parameters:plot – the plot to associate with the colorbar. If None will remove any connection with a previous plot.

getColormap()

Returns:the Colormap colormap displayed in the colorbar.

setColormap(colormap, data=None)

Set the colormap to be displayed.

Parameters:

• colormap (Colormap) – The colormap to apply on the ColorBarWidget
• data (numpy.ndarray) – the data to display, needed if the colormap require an autoscale

setLegend(legend)

Set the legend displayed along the colorbar

Parameters:legend (str) – The label

getLegend()

Returns the legend displayed along the colorbar

Returns:return the legend displayed along the colorbar Return type:str

getColorScaleBar()

Returns:return the ColorScaleBar used to display ColorScale and ticks
