PrintPreviewToolButton: Print preview buttons

This modules provides tool buttons to send the content of a plot to a print preview page. The plot content can then be moved on the page and resized prior to printing.

Classes

• PrintPreviewToolButton

• SingletonPrintPreviewToolButton

Examples

Simple example

from silx.gui import qt
from silx.gui.plot import PlotWidget
from silx.gui.plot.PrintPreviewToolButton import PrintPreviewToolButton
import numpy

app = qt.QApplication([])

pw = PlotWidget()
toolbar = qt.QToolBar(pw)
toolbutton = PrintPreviewToolButton(parent=toolbar, plot=pw)
pw.addToolBar(toolbar)
toolbar.addWidget(toolbutton)
pw.show()

x = numpy.arange(1000)
y = x / numpy.sin(x)
pw.addCurve(x, y)

app.exec()

Singleton example

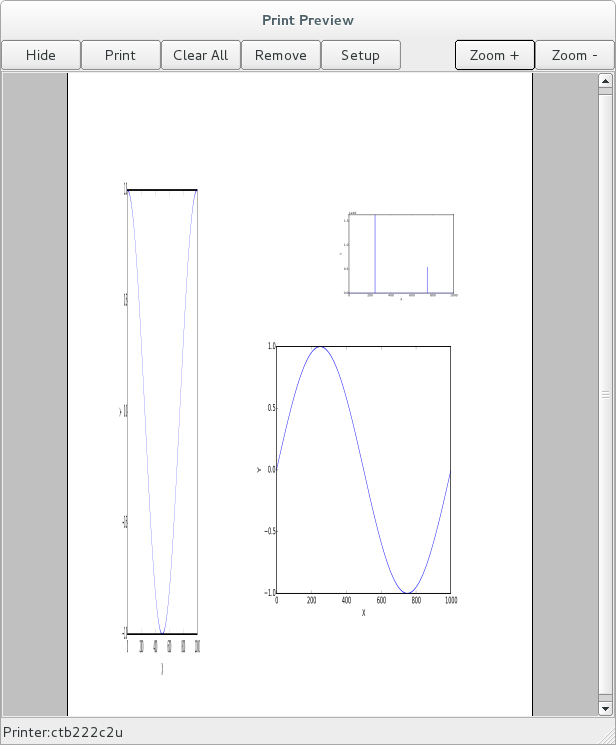

This example illustrates how to print the content of several different plots on the same page. The plots all instantiate a SingletonPrintPreviewToolButton, which relies on a singleton widget (silx.gui.widgets.PrintPreview.SingletonPrintPreviewDialog).

from silx.gui import qt
from silx.gui.plot import PlotWidget
from silx.gui.plot.PrintPreviewToolButton import SingletonPrintPreviewToolButton
import numpy

app = qt.QApplication([])

plot_widgets = []

for i in range(3):
    pw = PlotWidget()
    toolbar = qt.QToolBar(pw)
    toolbutton = SingletonPrintPreviewToolButton(parent=toolbar,
                                                 plot=pw)
    pw.addToolBar(toolbar)
    toolbar.addWidget(toolbutton)
    pw.show()
    plot_widgets.append(pw)

x = numpy.arange(1000)

plot_widgets[0].addCurve(x, numpy.sin(x * 2 * numpy.pi / 1000))
plot_widgets[1].addCurve(x, numpy.cos(x * 2 * numpy.pi / 1000))
plot_widgets[2].addCurve(x, numpy.tan(x * 2 * numpy.pi / 1000))

app.exec()

class PrintPreviewToolButton(parent=None, plot=None)

QToolButton to open a PrintPreviewDialog (if not already open) and add the current plot to its page to be printed.

Parameters

• parent – See QAction

• plot – PlotWidget instance on which to operate

property printPreviewDialog

Lazy loaded PrintPreviewDialog

getTitle()

Implement this method to fetch the title in the plot.

Returns

Title to be printed above the plot, or None (no title added)

Return type

str or None

getCommentAndPosition()

Implement this method to fetch the legend to be printed below the figure and its position.

Returns

Legend to be printed below the figure and its position: “CENTER”, “LEFT” or “RIGHT”

Return type

(str, str) or (None, None)

getPlot()

Return the PlotWidget associated with this tool button.

Return type

PlotWidget

class SingletonPrintPreviewToolButton(parent=None, plot=None)

This class is similar to its parent class PrintPreviewToolButton but it uses a singleton print preview widget.

This allows for several plots to send their content to the same print page, and for users to arrange them.

property printPreviewDialog

Lazy loaded PrintPreviewDialog
