Widgets gallery#

`silx.gui.console` Widgets#

Widget	Description
	`IPythonWidget` is an interactive console widget running a :class`QtInProcessKernelManager`. This allows to push variables to the interactive console, and interact with your application (e.g. adding curves to a plot)
	`IPythonDockWidget` is an `IPythonWidget` embedded in a `QDockWidget`.

Widget	Description
	`ArrayTableWidget` is a table widget with browsers designed to display the content of multi-dimensional data arrays.
	`DataViewer` is a widget designed to display data using the most adapted view.
	`DataViewerFrame` is a `DataViewer` with a view selector that lets you view the data using any compatible view.
	`NumpyAxesSelector` is a widget designed to select a subarray in a n-dimensional array, by fixing the index on some of the dimensions.

Widget	Description
	`DataFileDialog` is a dialog that allows users to select any datasets or groups from any HDF5-like file. It features a file browser that can also browse the content of HDF5 file as if they were directories.
	`ImageFileDialog` is a dialog that allows users to select an image from any HDF5-like file.
	`GroupDialog` is a dialog that allows users to select a group from one or several specified HDF5-like files.

Widget	Description
	`FitWidget` is a widget designed to configure and run a fitting process, with constraints on parameters.
	`BackgroundWidget.BackgroundDialog` is a widget designed to adjust the parameters and preview the results of a snip or strip background filter.

Widget	Description
	`Hdf5TreeView` is a tree view desiged to browse an HDF5 file structure.

Plotting widgets:

Widget	Description

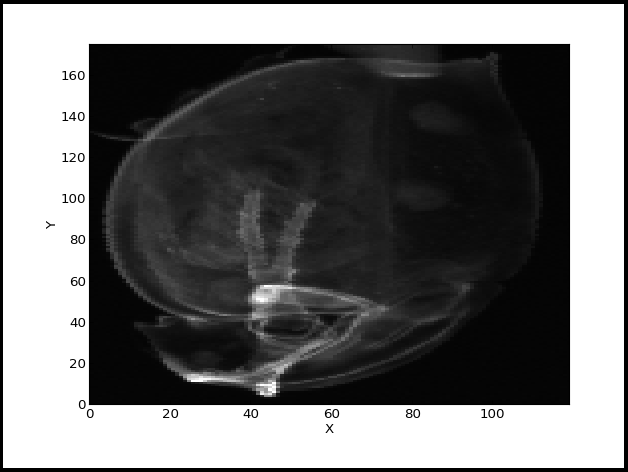

	`PlotWidget` is the base Qt widget providing a plot area. Other plot widgets are based on this one and provides the same API.

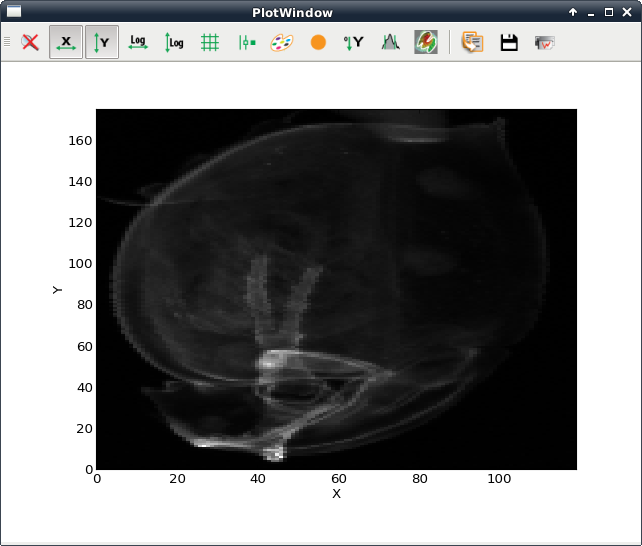

	`PlotWindow` adds a toolbar to `PlotWidget`. The content of this toolbar can be configured from the `PlotWindow` constructor or by hiding its content afterward.

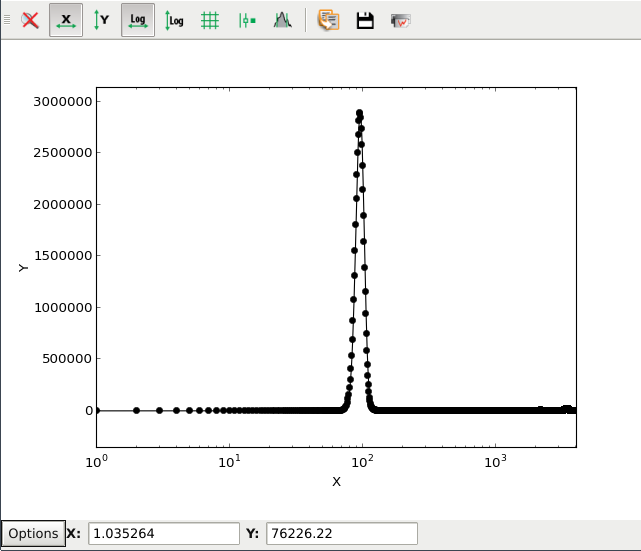

	`Plot1D` is a `PlotWindow` configured with tools useful for curves.

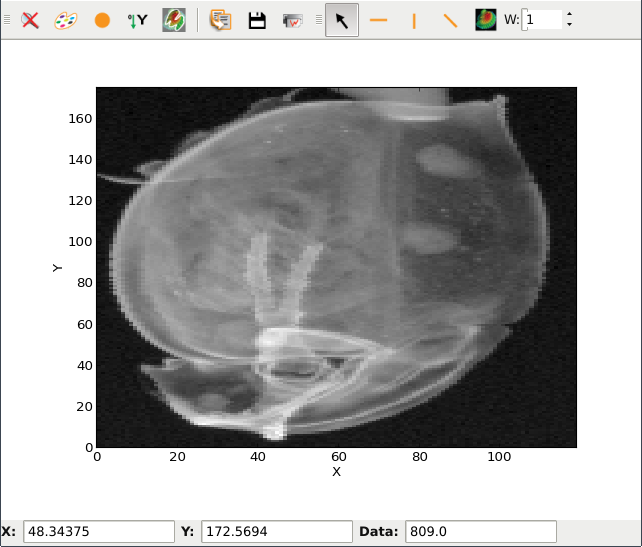

	`Plot2D` is a `PlotWindow` configured with tools useful for images.
	`ImageView` adds side histograms to a `Plot2D` widget.

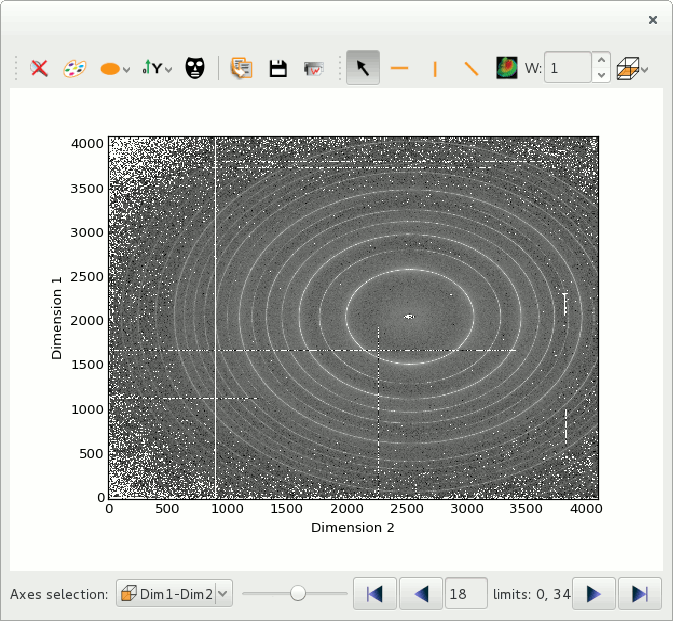

	`StackView` is a widget designed to display an image from a stack of images in a `PlotWindow` widget, with a frame browser to navigate in the stack. The profile tool can do a 2D profile on the stack of images.
	`ComplexImageView` is a widget dedicated to visualize a single 2D dataset of complex data. It allows to switch between viewing amplitude, phase, real, imaginary, colored phase with amplitude or log10(amplitude) as brightness.
	`ScatterView` is a widget dedicated to visualize a scatter plot.
	`CompareImages` is a widget dedicated to compare 2 images.

Additional widgets:

Widget	Description
	`PlotTools.PositionInfo` is a widget displaying mouse position and information of a `PlotWidget` associated to the mouse position.

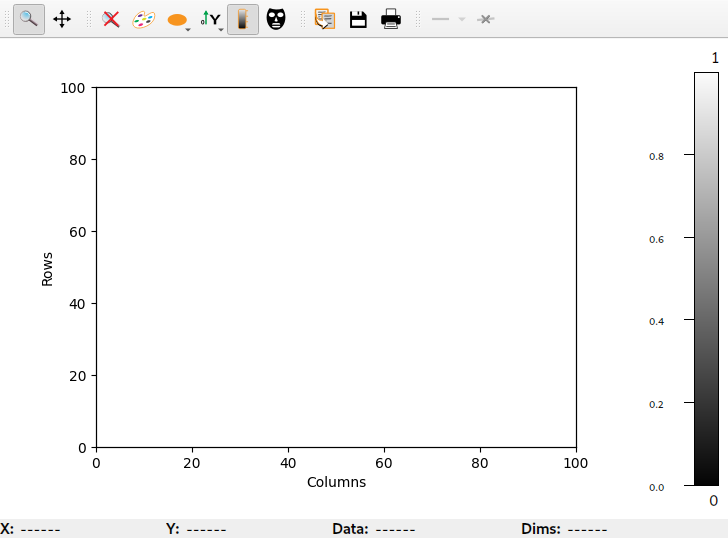

	`PlotTools.LimitsToolBar` is a QToolBar displaying and controlling the limits of a `PlotWidget`.

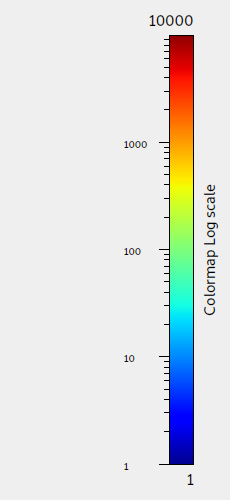

	`ColorBar.ColorBarWidget` display colormap gradient and can be linked with a plot to display the colormap

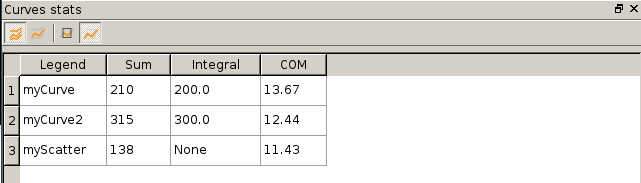

	`statsWidget.StatsWidget` display statistics on plot’s items (curve, images…)

Widget	Description
	`SceneWindow` is a `QMainWindow` embedding a 3D data visualization `SceneWidget` and associated toolbars. It can display 2D images, 2D scatter data, 3D scatter data and 3D volumes with different visualizations. See `plot3dSceneWindow.py` in silx.gui.plot3d sample code.
	`SceneWidget` is a `Plot3DWidget` providing a 3D scene for visualizing different kind of data. It can display 2D images, 2D scatter data, 3D scatter data and 3D volumes with different visualizations. See `plot3dSceneWindow.py` in silx.gui.plot3d sample code.

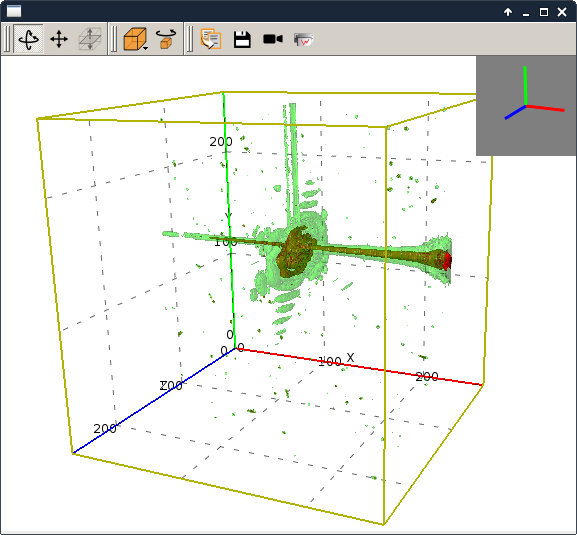

	`ScalarFieldView` is a `Plot3DWindow` dedicated to display 3D scalar field. It can display iso-surfaces and an interactive cutting plane.

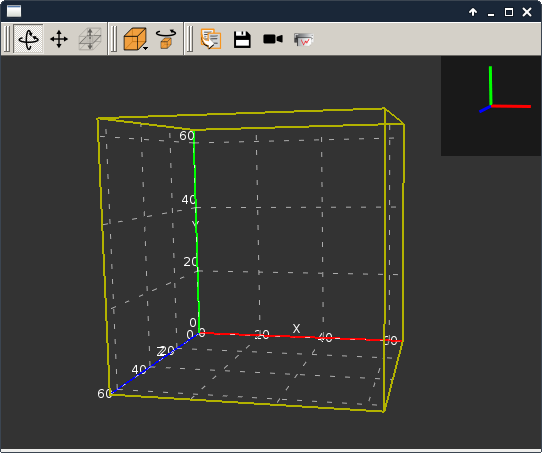

	`Plot3DWindow` is a `QMainWindow` with a `Plot3DWidget` as central widget and toolbars.

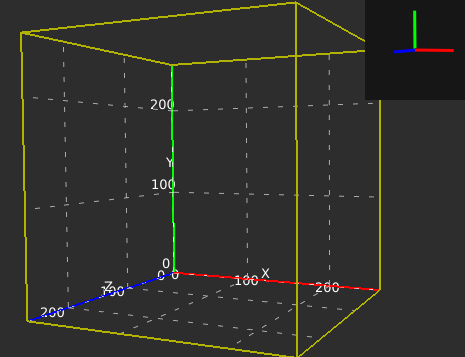

	`Plot3DWidget` is the base Qt widget providing an OpenGL 3D scene. Other widgets are using this widget as the OpenGL scene canvas.

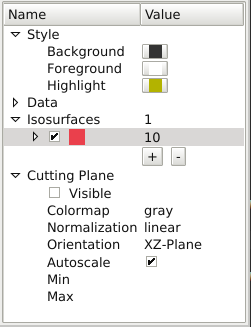

	`SFViewParamTree` is a `QTreeView` widget that can be attached to a `ScalarFieldView`. It displays current parameters of the `ScalarFieldView` and allows to modify it. See silx.gui.plot3d sample code.

Additional widgets:

Widget	Description
	`PositionInfoWidget` displays the position and value of selected data point in a `SceneWidget`.
	`GroupPropertiesWidget` allows to reset properties of all items in a group in a `SceneWidget`.

Widget	Description
	`FrameBrowser.FrameBrowser` is a browser widget designed to browse through a sequence of integers (e.g. the indices of an array)
	`FrameBrowser.HorizontalSliderWithBrowser` is a `FrameBrowser` with an additional slider.
	`RangeSlider` is a slider with 2 thumbs dedicated to the interactive selection of an interval.
	`PeriodicTable.PeriodicCombo` is a `QComboBox` widget designed to select a single atomic element.
	`PeriodicTable.PeriodicList` is a `QTreeWidget` designed to select one or more atomic elements.
	`PeriodicTable.PeriodicTable` is a periodic table widget designed to select one or more atomic elements.
	`TableWidget.TableWidget` and `TableWidget.TableView` inherit respectively `QTableWidget` and `QTableView`, and add a context menu with cut/copy/paste actions.
	`WaitingPushButton` is a `QPushButton` that can be graphically disabled, for example to wait for a callback function to finish computing.
	`ThreadPoolPushButton` is a `WaitingPushButton` that executes a callback in a thread.
